AIPS
We have released the world's first FPGA (AI ASIC) and programmable gallium nitride (GaN) array driver for the "embodied robot power system chip", "edge AI physical posture model", and "robot visual touch" artificial intelligence software solution. We have obtained multiple invention patents and our research team has won multiple second and third prizes in the ICCV International Artificial Intelligence Competition for three consecutive years. In 2024, we won the CVPR championship at the International Computer Vision Touch Summit.
GaN
Low, medium, and high voltage power devices and large-scale GaN array driver chips designed based on gallium nitride (GaN) materials are mainly used in fields such as embodied robots, intelligent equipment, drones, photovoltaic inverters, motor control, new energy vehicles, and medium and low voltage fast charging.
RF CHIP
RF chip is the core component of mobile intelligent terminal products, and the pursuit of low power consumption, high performance, and low cost is the main driving force for its technological upgrade. It mainly includes transceiver and RF front-end [such as power amplifier (PA), antenna switch (Switch), filter, duplexer and duplexer, and low-noise amplifier (LNA), etc.].
Mini LED
The MiniLED display driver chip integrates high-precision constant current control, built-in advanced AM digital driver, PWM generation, and digital signal processor modules, and is the main part of the display imaging system. The 8K MiniLED display high refresh CPWM technology chip and matrix LED backlight driver chip developed by the company have obtained 30 invention patent authorizations for a single chip. The ultimate adaptive driving circuit precisely and evenly controls the imaging system to achieve better DCR, effectively reproducing different color levels with precision, making DCR dynamics more intuitive for visual enjoyment.

RF CHIP

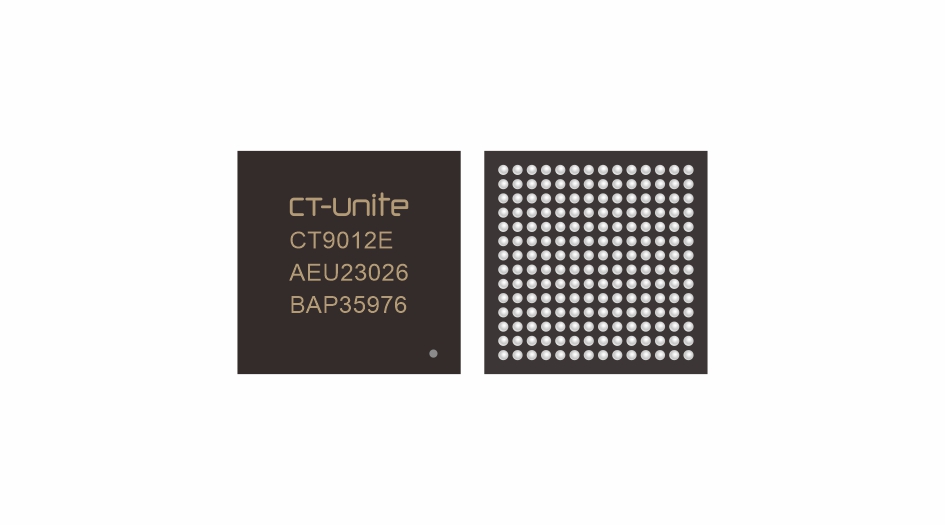

CT9012

Satellite CHIP


Sub-6GRFTransceiver

The working frequency band covers 300MHz~6000MHz

Signal processing bandwidth supports up to 200MHz

Supports 4T4RX2FB channels, supports FDD and TDD communication,

Internally integrated 2 * LO, 16bit 1474.56MspsADC,

16bit2949.12MspsDAC

Low noise Mixer, 204B/C high-speed digital interface.

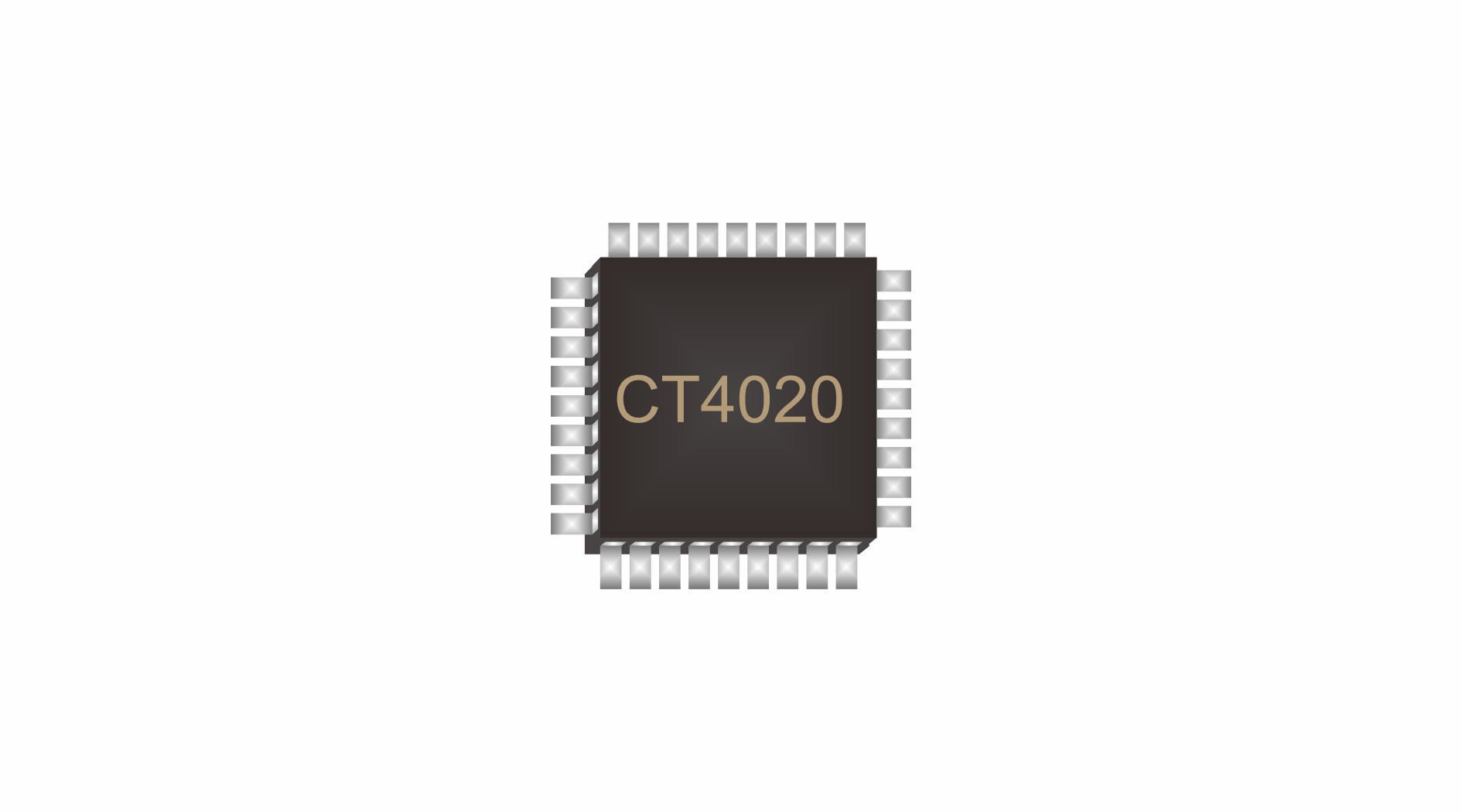

CT-4020

Beidou Second Generation (BDS2)

Integrated navigation and positioning single chip

3.3VSupply; QFN-364.5mm × 4.5mm

Supports various satellite systems such as BDS, GPS, GLONASS, etc

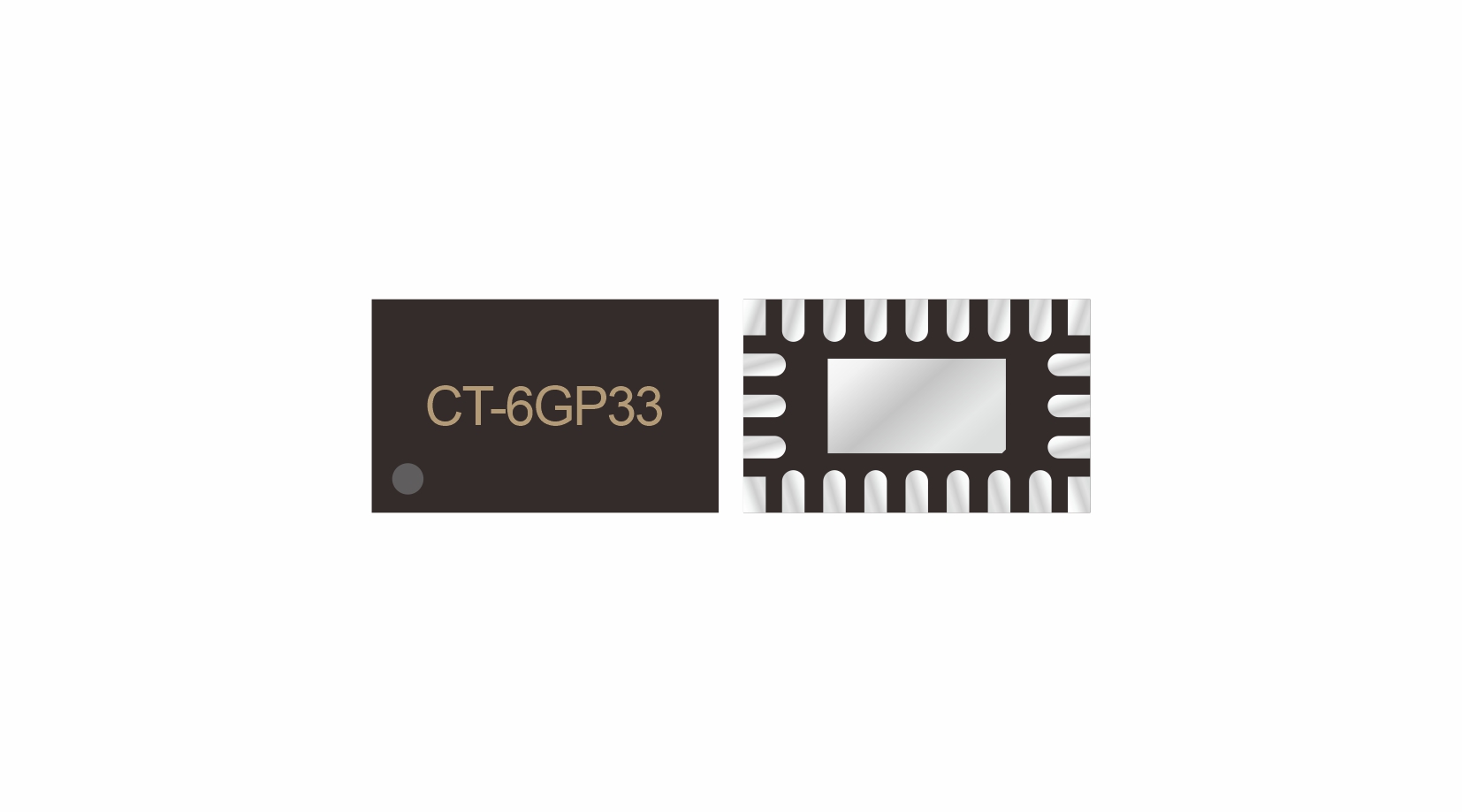

CT-6GP33

Frequency: 2GHz~6GHz; Power: 33dBm

Voltage: 28V; Gain: 22dB; Current: 0.65A;

Size: 7.8 × four point eight × 3mm

Support LNA_ EN, PA_ EN, Vc1

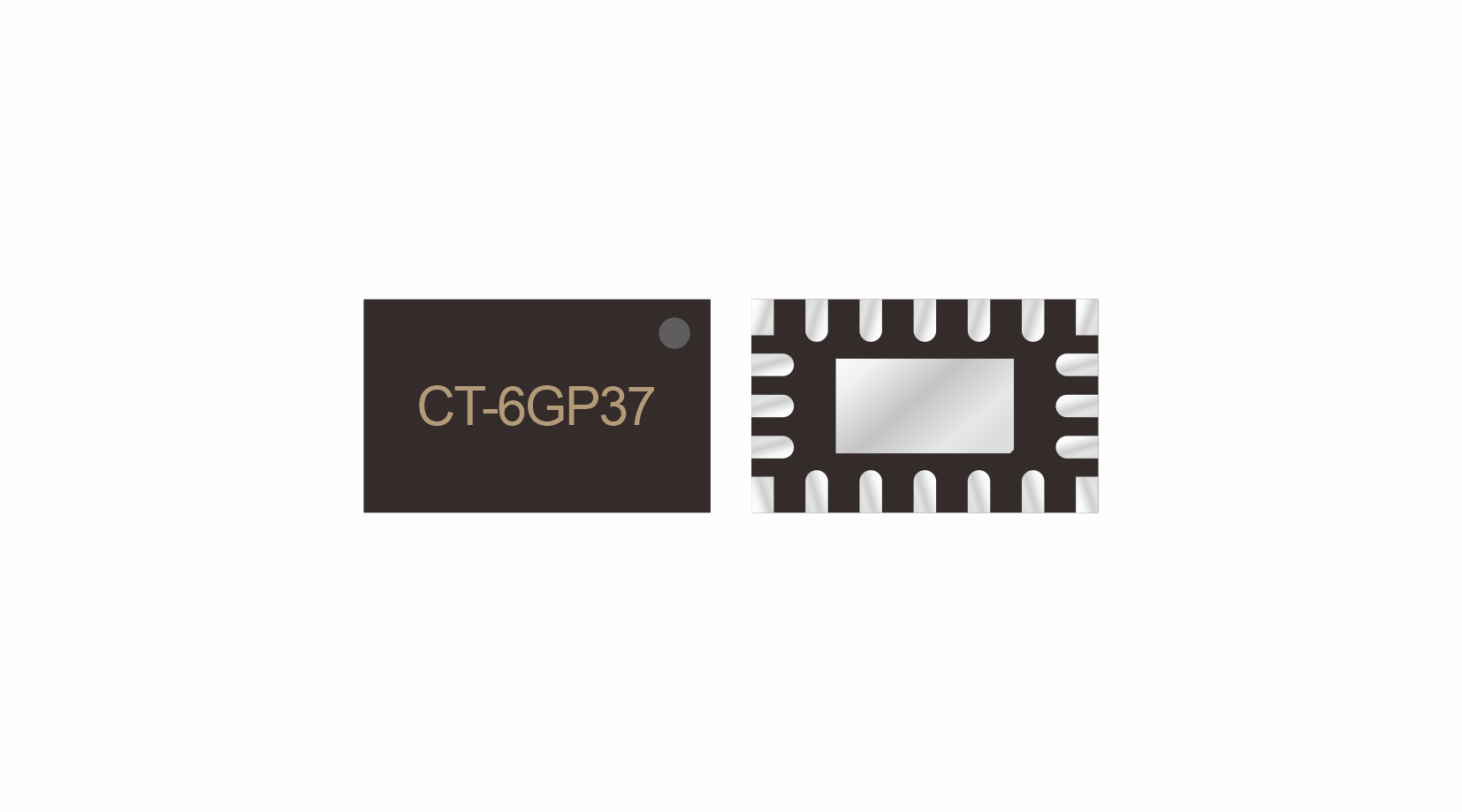

CT-6GP37

Frequency: 2GHz~6GHz; Power: 37dBm

Voltage: 28V; Gain: 22dB; Current: 0.65A;

Size: 7.8 × four point eight × 3mm

Support LNA_ EN, PA_ EN, Vc1

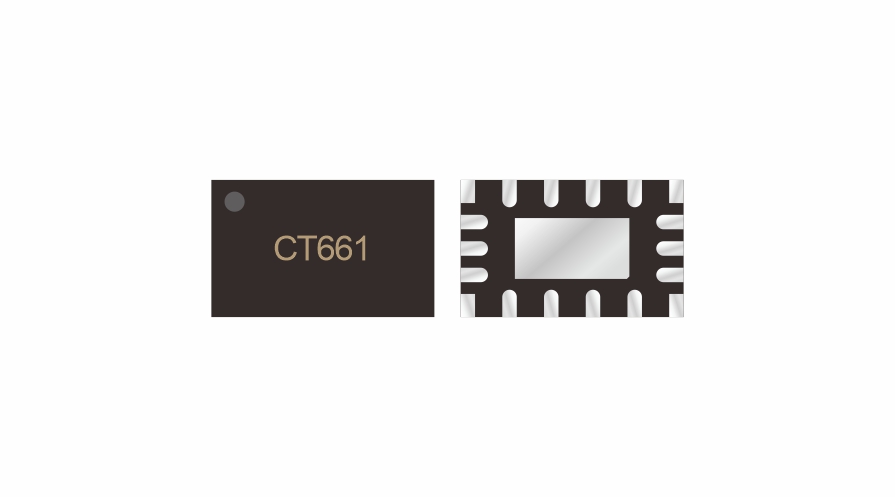

CT661

Frequency: 2GHz~6GHz; Power: 45dBm

Voltage: 28V; Gain: 21dB Current: 3.5A;

Size: 7.8 × four point eight × 3mm

Support LNA_ EN, PA_ EN, Vc1

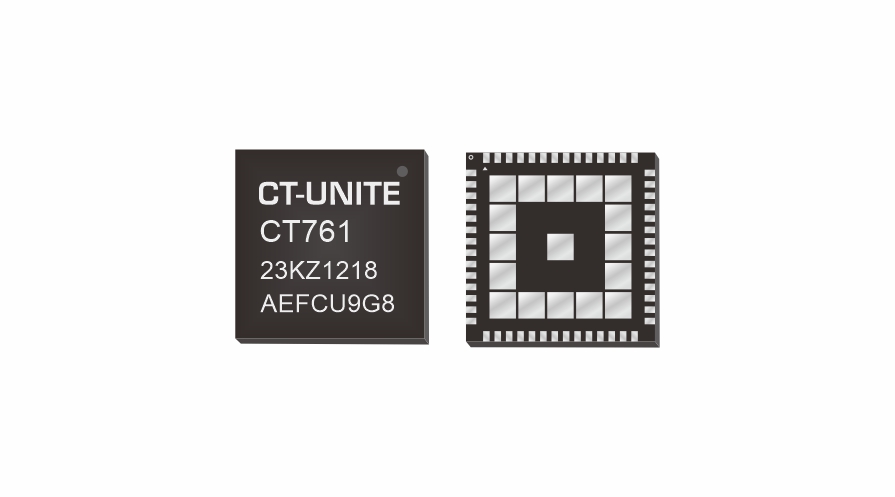

CT761

Sub 1G 6W PA

Packaging: QFN8x8-56

BW：300-550MHz

Gain (dB)：  37@433MHz




CT-83005

CT-83005 is a high-efficiency, DPD friendly, three-stage HBT universal power amplifier with operating frequencies ranging from 5100MHz to 5925MHz. Under typical 5V power supply conditions, the average output power can reach 28dBm and the peak power can reach 36dBm. The internal input and output impedance of the chip has been matched to 50 Ω, with on-chip power amplifier enable controller and temperature compensation circuit. Adopting advanced packaging, it has the characteristics of low cost and high reliability. Widely used in various high transmission rate application scenarios.

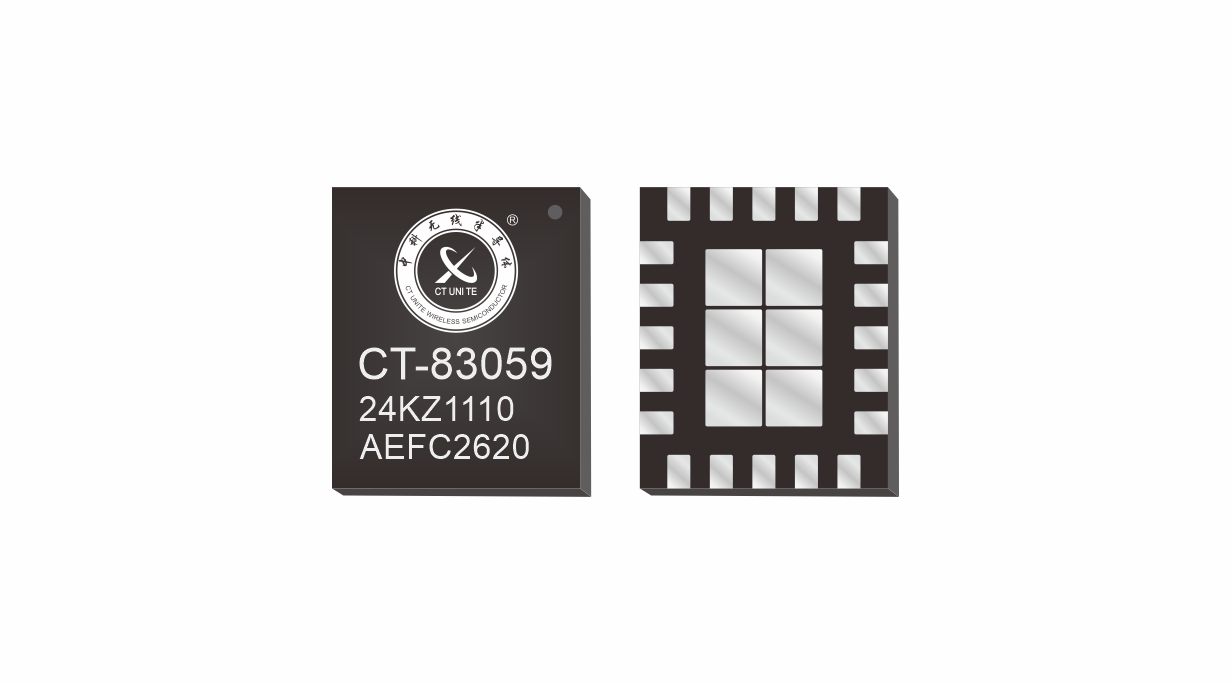

CT-83059

CT-83059 is a linear power amplifier with an operating frequency of 4900MHz~5925MHz, using a typical 5V operating voltage and a static current of 215mA. The input and output impedances inside the chip have been matched to 50 Ω. Adopting standard green lead-free advanced packaging, it has the characteristics of low cost and high reliability. Widely used in various high transmission rate application scenarios.
